​Performance Class HIDr Lamps

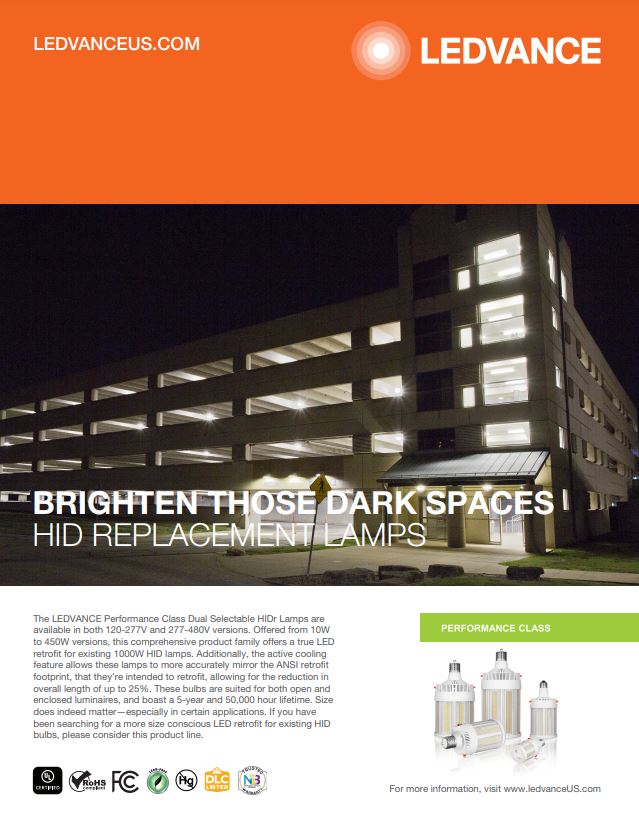

The LEDVANCE Performance Class HIDr Lamps are dual selectable and available in both 120-277V and 277-480V versions. Offered from 10W to 450W versions, this comprehensive product family offers a true LED retrofit for existing 1000W HID lamps. Additionally, the active cooling feature allows these lamps to more accurately mirror the ANSI retrofit footprint, that they’re intended to retrofit, allowing for the reduction in overall length of up to 25% (see photo to the right). These bulbs are suited for both open and enclosed luminaires, and boast a 5-year and 50,000 hour lifetime. Size does indeed matter—especially in certain applications. If you have been searching for a more size conscious LED retrofit for existing HID bulbs, please consider this product line.​​

​

​Benefits and Features


  • Active cooling allows for the reduction in size of the lamp of up to 30%, allowing it to fit into tight spaces and more accurately mirroring the traditional ANSI footprint.

  • Lumen and CCT selectable light enabled through physical controls located on the lamp.

  • Rated for open and enclosed fixtures with an IP64 listing and polycarbonate lens.

  • 285° beam angle (or omnidirectional) with Type V distribution.

  • Up to 157 LPW.

  • 3000K, 4000K, and 5000K color temperature selectable via the switches located on the lamp.

  • CRI >80.

  • Each model offers three wattage levels adjustable via the switch located on the side of the lamp. The wattages of this family range from 10 to 450W.

  • Type V distribution.

  • Energy savings up to 83%.​

​
