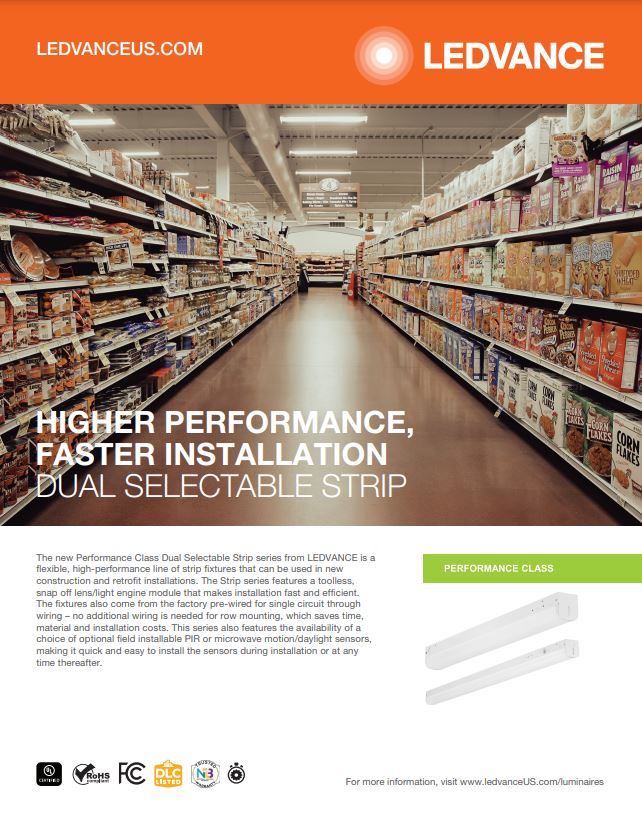

The new Performance Class Dual Selectable Strip series from LEDVANCE is a flexible, high-performance line of Strip fixtures that can be used in new construction and retrofit installations. These fixtures are available in 2ft, 4ft, and 8ft lengths and each one features 4 wattage selections and 3 CCT settings – ensuring exactly the right light for each application. The Strip 3A series features a toolless, snap off lens/light engine module that makes installation fast and efficient. The fixtures also come from the factory pre-wired for single circuit through wiring - no additional wiring is needed for row mounting, which saves time, material and installation costs. The Strip products operate over the entire 120 to 347 volt input range and are available with a number of optional mounting accessories and emergency back-up batteries. This series also features the availability of a choice of optional field installable PIR or microwave motion/daylight sensors, making it quick and easy to install the sensors during installation or at any time thereafter.
The Dual Selectable Strip Luminaire is intended for retail, manufacturing, warehouse, office, education, and lowbay applications.
CCT and Wattage Selectable
Selection switches are easily accessible on the outside of the fixture
Available in 2ft, 4ft, and 8ft lengths
Light engine and lens module feature toolless removal and secure snap-fit for fast, efficient installation
End-to-end joiner bracket for continuous row mounting V-hook mounting bracket, and split junction box cover included
Factory installed polarized wiring system, ready for single circuit row mounted through wiring. No additional wiring needed; save time, material and money
All fixtures are pre-wired for optional field installable internal microwave or external PIR motion/daylight sensors
Compatible with field installable LEDVANCE LINK™ components
Optional 8W emergency battery back-up (made to order)
DLC 5.1 Listed
Diffuse Acrylic lens provides smooth, even illumination
White powder coated metal body
CCT and Wattage Selectable. Factory installed polarized wiring system for continuous row mounting. Pre-wired for field installation of PIR or Microwave Motion/Daylight sensors. All fixtures include V-hooks, joiner brackets and junction box covers.
