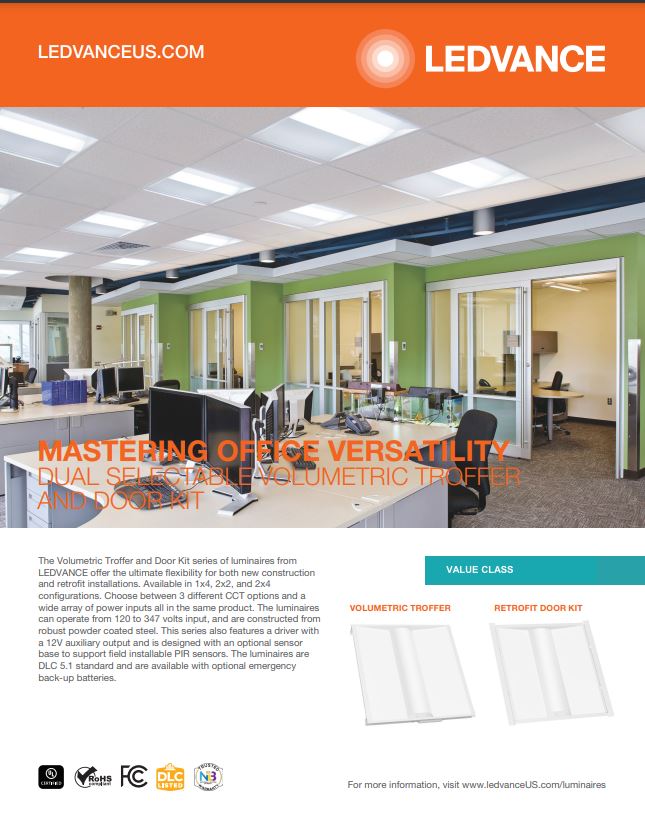

Dual Selectable Retrofit Door Kit 6A


The Retrofit Door Kit 6A is offered in three sizes (1'x4', 2'x2', and 2'x4') and is ideal for illuminating offices, retail spaces, hallways, healthcare applications, multipurpose rooms and hospitality areas. The Door Kits can be used to retrofit existing troffers to modern, more energy efficient LED lighting.​​

​Benefits and Features


  • Lumen and CCT selectability offer the ultimate in versatility for a large variety of applications and installations

    • 1x4: 20/24/28/32 wattage selectable

    • 2x2: 20/24/28/32 wattage selectable

    • 2x4: 24/32/39/44 wattage selectable

    • 2x4: 49/59/69 wattage selectable

  • All versions are 3500/4000/5000K CCT Selectable

  • Sensor base built into each fixture enables the simple field installation of optional PIR motion sensors

  • 120-347V operating voltage range

  • Up to 125 LPW

  • DLC 5.1

  • Ideal in retrofit applications, offering up to 51% energy savings

  • Driver includes 12V auxiliary output

​
