How to Know If LED Lighting is Dimmable: Informative Guide for Your Business Upgrade


​These days, LED lighting is widely used around the world. Many businesses and individuals are switching from traditional light sources to advanced LED bulbs. As LEDs become more popular, there's growing interest in dimmable lighting options.

However, not all LED lights support dimming. Installing a non-dimmable LED with a dimmer switch can cause flickering, buzzing, or even damage​ equipment. So, how to quickly determine whether LED lighting is dimmable?

In this article, we walk you through some ways to identify dimmable LEDs and help you confidently upgrade the lighting in your commercial or public spaces.

What is Dimmable LED Lighting?​

​​

Dimmable LED lighting, as the name suggests, is LED lights whose brightness can be adjusted. Compared with traditional incandescent lights, LED lights emit light through electronic components themselves, so the adjustment method is more complex. Not all LED lights support brightness adjustment. Only dimmable LED light bulbs with specific designs can smoothly transition between different brightness levels.


The core of dimmable function lies in it can switch according to environment and individual preference. For instance, dimming the light to reduce the reflection on the screen in the office. In a home area, lowering the lights at night can create a more comfortable and warmer atmosphere. Using the appropriate dimming switch in combination with dimmable LEDs can effectively save energy and extend the service life of the bulbs.


However, it should be noted that if a non-dimmable LED light is connected to a dimming switch, it may flicker, make a buzzing sound, and even damage the light. Therefore, choosing and confirming whether the LED light is dimmable is a very important step. ​



​

How Dimmable LED Lights Work


Traditional dimming techniques are mostly used for incandescent bulbs and halogen bulbs, mainly controlling brightness by reducing the input voltage. This method is simple and straightforward because the brightness of an incandescent bulb is directly proportional to its voltage. The lower the voltage, the dimmer the bulb.


However, this method doesn't work for LED lights because they use semiconductors and run on low voltage with a constant current. Their brightness isn’t controlled by the voltage level but by the driver circuit instead.


This makes LED dimming technology more complicated. In order to achieve smooth and stable brightness adjustment, LEDs need to be matched with special drivers and compatible dimmers. Next, we will introduce the two main ways to dim LEDs:


Pulse Width Modulation (PWM​)


Pulse width modulation is a technique commonly used to regulate the output power of electronic devices. In the field of LED lighting, PWM is widely used to control brightness. Put simply, PWM doesn’t change the brightness by adjusting the voltage. Instead, it quickly turns the power on and off, making the LED rapidly switch between being on and off.


This might sound a bit strange. The light turns on and off now and then. Doesn't it flicker? Actually, no. Because the frequency of this on and off process is extremely high, usually several thousand times per second or even higher, the human eye cannot detect the flickering phenomenon at all. What is seen is only the effect of the light getting brighter or dimmer.


The key to PWM is the duty cycle, which means how long the LED stays on during each cycle. For example, if the LED is on 70% of the time and off 30%, it will shine at about 70% of its full brightness. By changing this on/off ratio, you can precisely control how bright the light is.


PWM has several advantages. It offers precise brightness control, is energy-efficient, and doesn’t change the LEDs voltage or current, so it has little effect on the light’s lifespan. However, if the PWM frequency is too low or the equipment isn’t well-made, it can cause visible flickering, which may lead to eye strain or visual fatigue.​


​Analog Dimming

Analog dimming works by changing the brightness of a light by adjusting the voltage or current. This method is common in traditional lighting and can also be used with some LED drivers. The idea is simple. Higher voltage makes the light brighter, and lower voltage makes it dimmer or turns it off.

Here are some common types:

  • 0-10V Dimming: The brightness of the lights is controlled by transmitting voltage signals ranging from 0 to 10 volts. The higher the voltage, the brighter the light.

  • Resistive Dimming: The LED’s brightness can be adjusted by adding a variable resistor in series to change the current flowing through the circuit.

  • Leading Edge Dimming: Cut the front edge of the AC waveform. Reduce the power-on time for dimming.

  • Trailing Edge Dimming: Cut the rear edge of the AC waveform. Designed specifically for LEDs. It needs to be matched with an electronic transformer or an electronic dimmer.​


Analog dimming is easy to operate, and the dimming process is continuous and smooth without obvious jumps. It is suitable for places that do not require high-frequency dimming, such as offices, shopping malls, classrooms, etc.

However, analog dimming also has some limitations. First, because it adjusts brightness by changing the voltage or current, analog dimming can put extra strain on the LED driver, which may reduce its efficiency and lifespan. Also, analog signals can be easily affected by interference over long distances, leading to unstable control. Compared to PWM, analog dimming is a bit less accurate and offers fewer features, so it’s not ideal for systems that need complex lighting control.

The Importance of Compatibility between LED Lights and Dimmers

​​ When using dimmable LED lights, it is critical to ensure the compatibility of the LED lights with the dimmer. Many dimmers are designed for traditional incandescent lights, which adjust the brightness by changing the voltage. However, LED lights work differently from incandescent lights and must be dimmed using a specially designed dimmer. If an incompatible dimmer is used, the LED light may not dim as expected.


Also, how well dimmers and LED lights work together affects energy savings and performance. A compatible dimming system helps the lights stay stable at different brightness levels, extends their lifespan, and improves energy efficiency. In commercial and public spaces, picking the right dimmer and light combination not only enhances user experience but also lowers maintenance costs.



​​

​Why Some LED Lights Aren't Dimmable

​

Non-dimmable LED lights are usually because their internal driver circuit design does not support brightness adjustment. Drivers for non-dimmable LEDs usually supply a fixed current and don’t have any way to​ adjust brightness or accept dimming signals, so their brightness can’t be changed.


Some low-cost or basic LED lamps use simple constant current circuits to keep the design cheap and straightforward. These circuits can't respond to dimming signals and can't smoothly adjust brightness. So, when you connect these LEDs to a dimmer, you might see flickering, hear buzzing, or even damage the light.


Another issue is that many non-dimmable LEDs aren’t compatible with common dimming methods like leading edge or trailing edge dimming. Since they don’t have the proper circuit protection or filtering, they can’t handle the changes in the power waveform from the dimmer. This often causes unstable performance, or the light may not turn on at all.


How to Identify If an LED Light Is Dimmable​


Before purchasing or installing, it is particularly important to identify whether the LED light is dimmable. Here are some ways to tell whether LED light is dimmable:​

Check the Product Label
​

  • Keywords on the packaging or label

The most direct and reliable method is to check the packaging or label of the product. Most regular manufacturers will clearly mark dimmable or non-dimmable on the packaging.


The product packaging usually uses dimmable, dimmable LED or a dimming icon to indicate that this lamp supports brightness adjustment. However, if it is marked as non-dimmable or has no dimming words at all, it usually indicates that this LED light does not support dimming.​
​
​​
​

  • Information of the light body

Apart from the outer packaging, the nameplate or label information on the LED light body is also worth checking. Some lamps will mark technical parameters on the lamp head, base or side, which may include descriptions of dimming functions, such as words like "AC220V Dimmable".


Consult Product Information

If you are not sure, you can record the complete model of the product and search for the product specification sheet on the brand's official website or e-commerce platform. Generally speaking, the product detail page or manual will clearly list whether dimming is supported and the type of compatible dimmer.


Practical Test

Also, if product descriptions or label info aren't available, you can make decisions based on how the product is actually used. But this method comes with risks, so it should be handled carefully.


For example, you can connect an LED light to a circuit that is known to support dimming, and then slowly adjust the brightness using a dimmer to observe how the light responds. If the LED light can dim and brighten smoothly without flickering or noise, it is likely dimmable.


Confirm the Purchase Channel and Model

In addition to hardware identification, you can also refer to the purchase channel. Brand owners, lighting specialty stores, and e-commerce platforms usually mark "dimmable" or "non-dimmable" in the product names.


When making a purchase, be sure to check the model to ensure that the product you buy indeed supports dimming. Especially when choosing lights for specific lighting effects in scenarios such as home, commercial or stage settings, it's important to choose correctly to avoid costly rework or unnecessary expenses.

​

Finally, it should be noted that the dimming function not only depends on the light itself but also involves the compatibility of the dimmer. Some LEDs, although dimmable, are not suitable for all types of dimmers. As a case in point, some lights are only compatible with rear-edge phase-cut dimmers. If used with incompatible leading-edge phase-cut dimmers, similar issues such as poor dimming performance may occur.


Top Dimmable LEDs in LEDVANCE

As one of the world's leading lighting brands, LEDVANCE is committed to providing customers with high-quality LED lights and matching dimmers. We understand the high demands on compatibility and performance during lighting system upgrades. Therefore, our products not only have excellent light performance, but also perfectly match a variety of dimming solutions.


Here are some recommended LED dimmable light products:

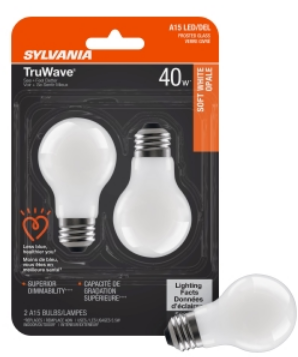

​Natural-Series-A15.png​​

SYLVANIA TruWave Natural Series lights help you see, feel, and live better by mimicking the natural spectrum of sunlight. They come in a variety of styles, like standard, decorative, under cabinet, flood, and track lighting, so there’s an option for every space. These bulbs are fully dimmable an​d designed with a standard base, making it simple to swap them in for traditional bulbs.

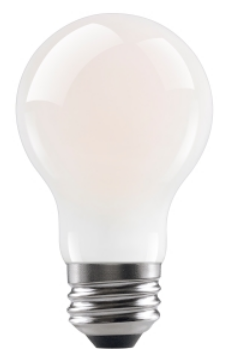

​SYLVANIA-Double-Life-Wet-Rated-A19-Family.png​​

2. SYLVANIA Double Life Wet Rated A19 Family
These bulbs are CEC and JA8 qualified, making them a reliable choice for energy efficiency and performance. They're safe for use in wet locations and enclosed fixtures, offering flexibility across a variety of settings. Environmentally friendly and RoHS compliant, they contain no mercury, lead, or other hazardous materials. With dimmable functionality, you can easily adjust the brightness to suit your needs. Plus, a 90+ CRI ensures excellent color rendering for more vibrant, true-to-life lighting.

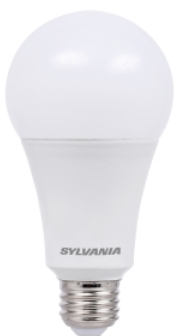

​ULTRA-LED-A-Line-Lamps.png​​

This lighting solution offers smooth dimming capabilities down to 10% and boasts an impressive lifespan of up to 15,000 hours. It is an environmentally friendly choice that complies with RoHS standards. Available in a range of color temperatures from 2700K to 5000K. It’s designed for both indoor and outdoor use, including rough service conditions. With energy savings of up to 85% and a lifespan up to 20 times longer than traditional incandescent bulbs, it delivers both performance and efficiency



​
We make it easy to enjoy comfortable, energy-efficient, and smart lighting no matter at home, in a busy commercial space, or even on stage. With LEDVANCE, you're choosing a reliable, professional lighting​ supplier.
